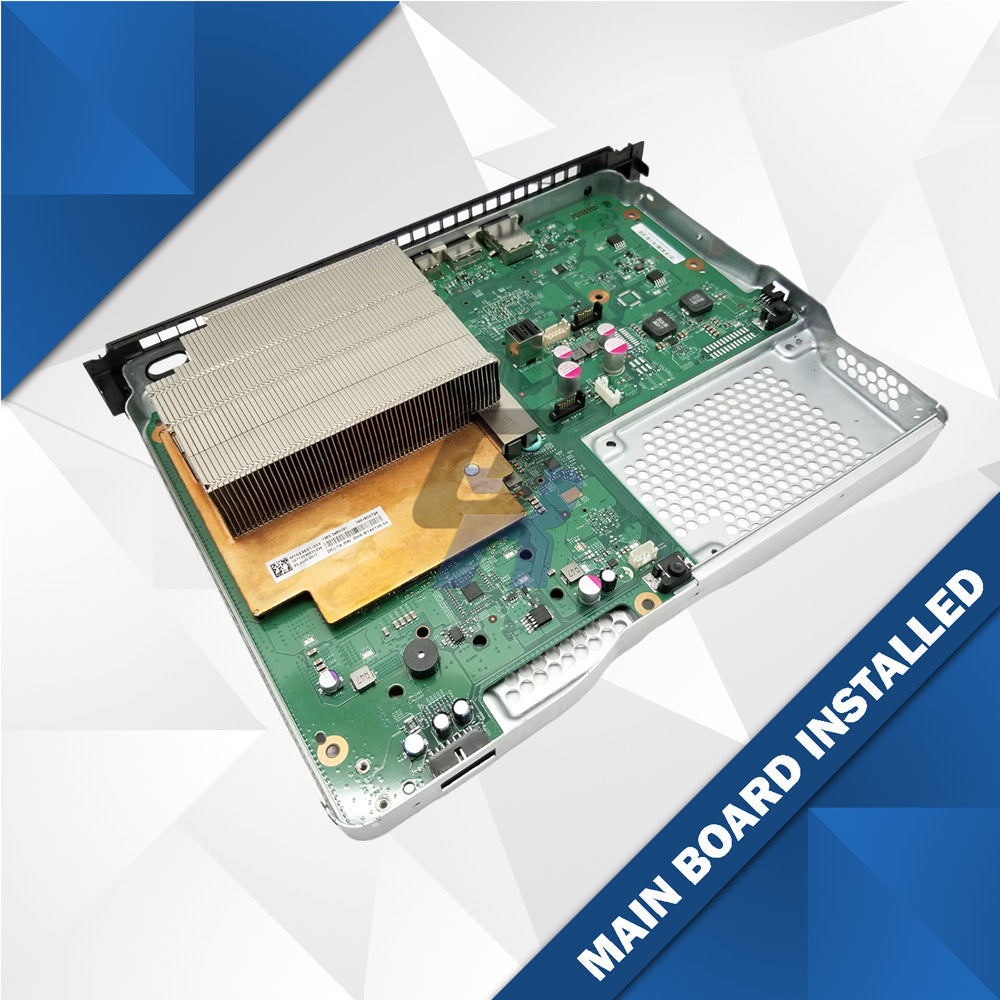

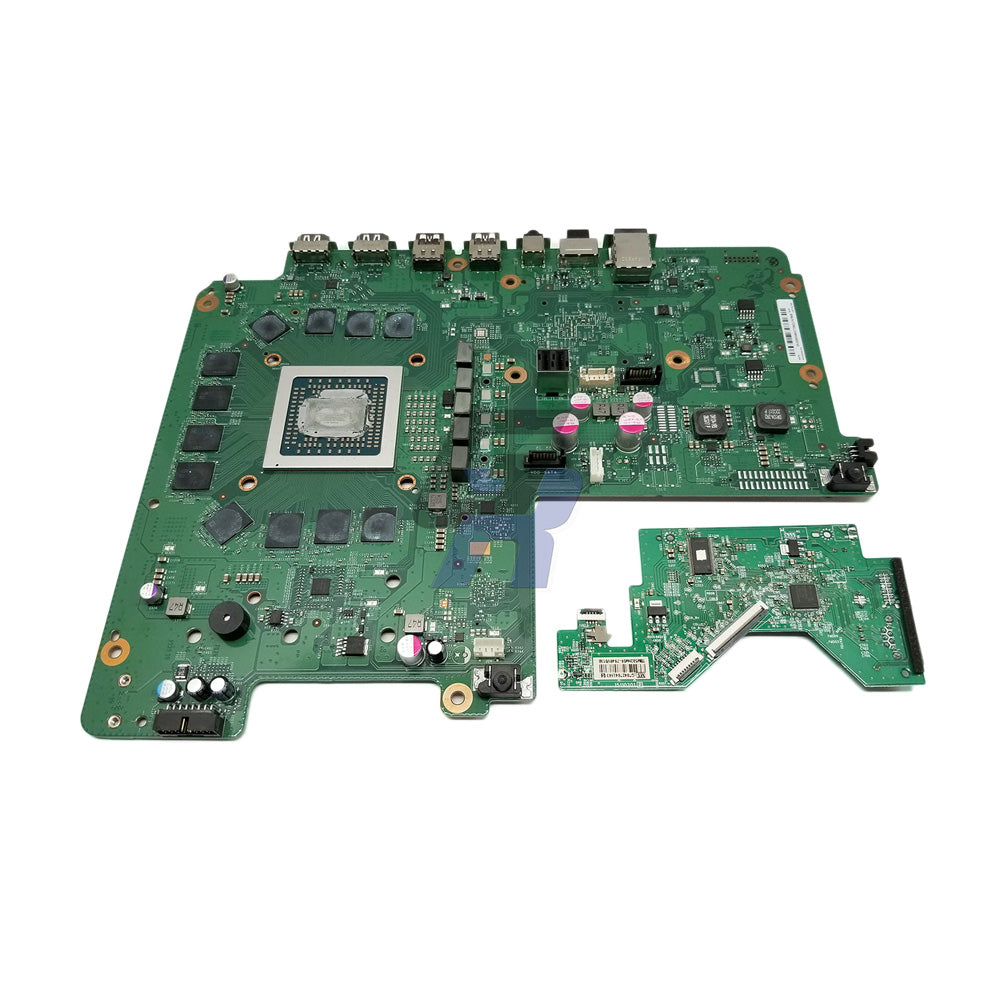

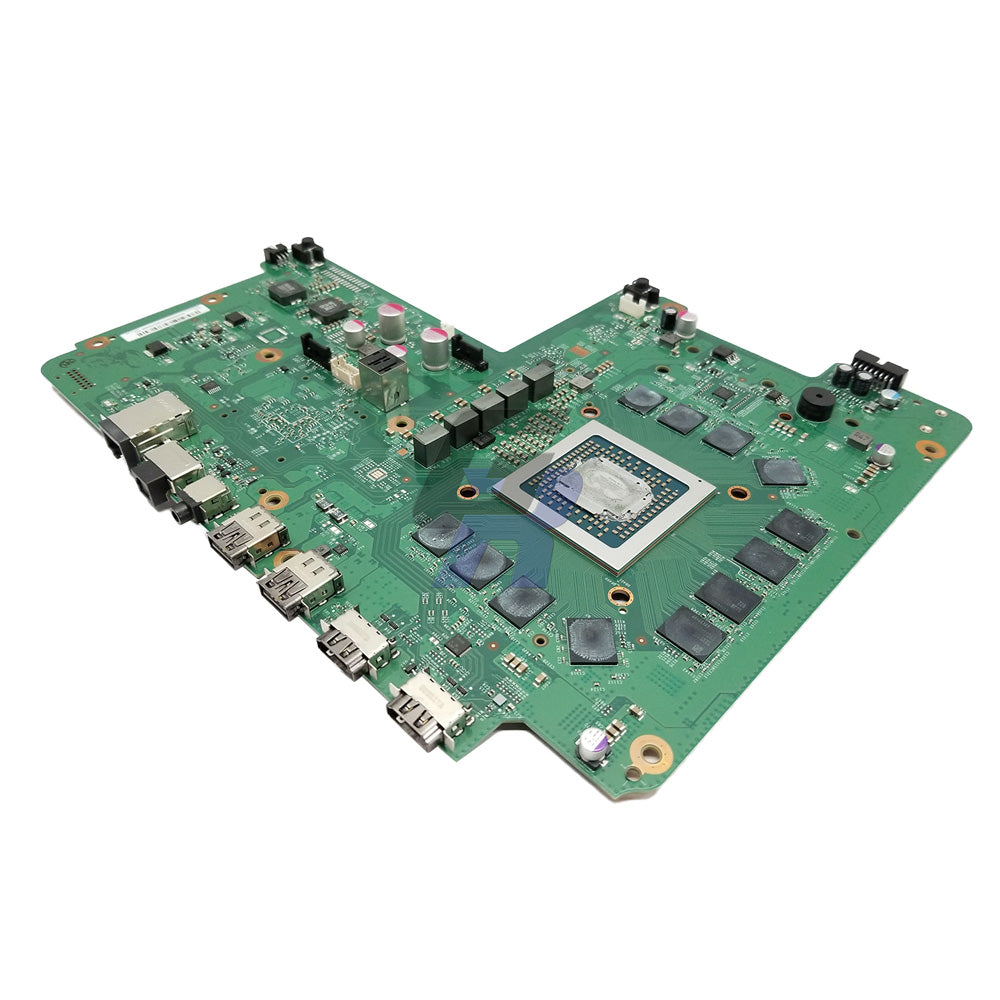

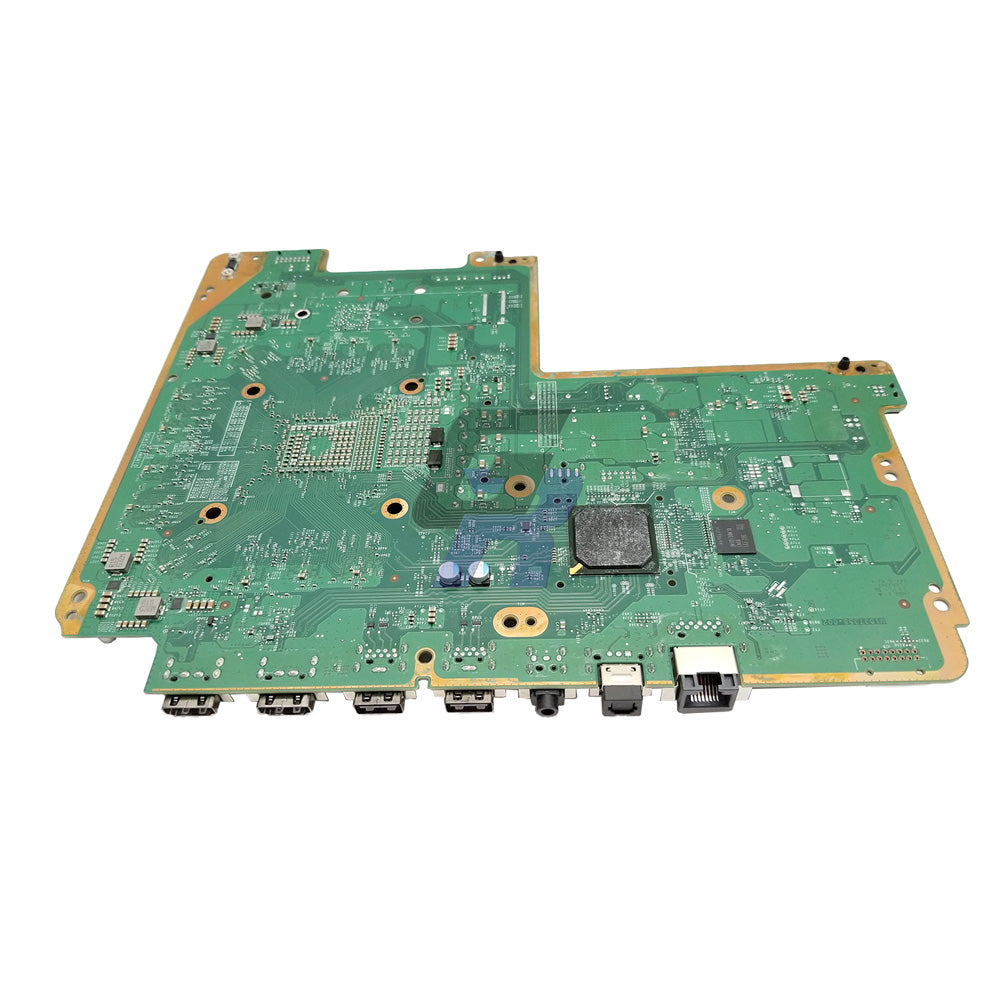

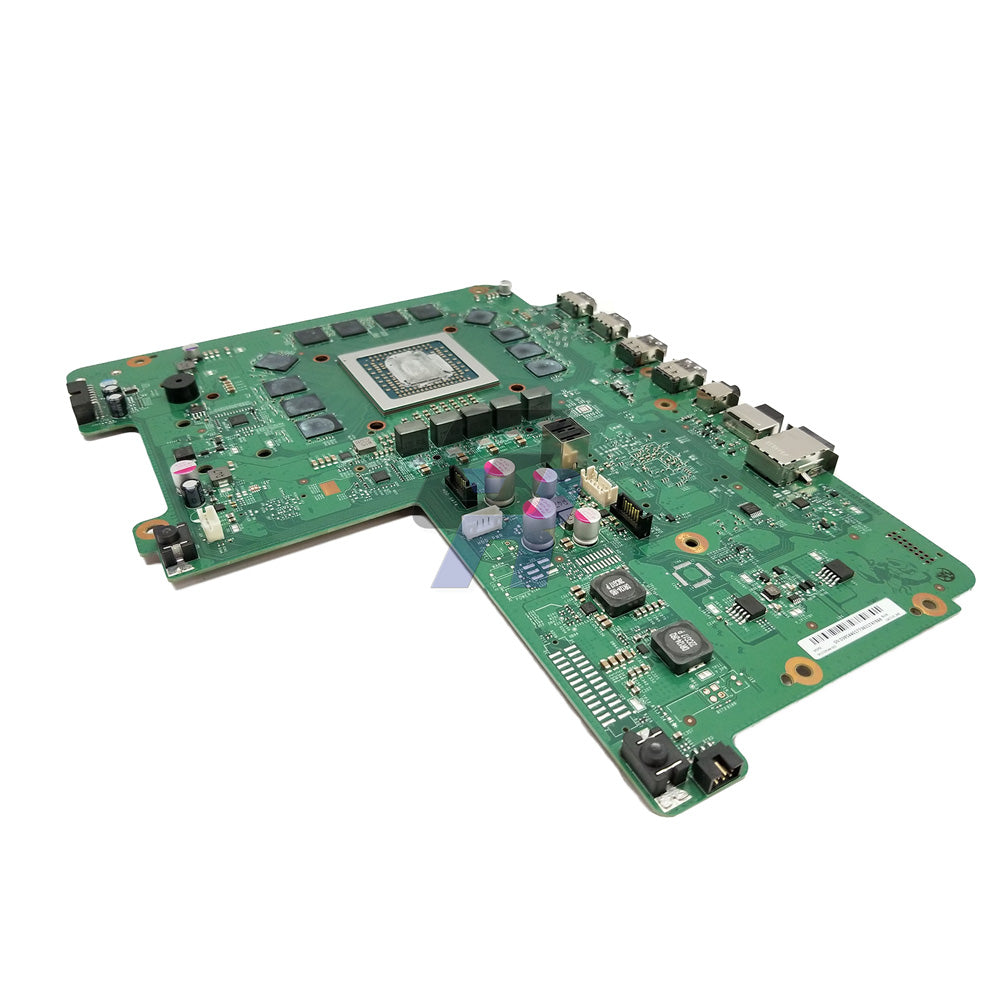

Xbox ONE X Replacement Motherboard & matching Optical Drive PCB - (v1) Type 1

$119.99
$119.99
Sale Sold out
Shipping calculated at checkout.

Restore your Xbox ONE X to peak performance with this OEM Replacement Motherboard and matching Optical Drive PCB (v1) Type 1. Designed specifically for model 1787, this high-quality replacement resolves common issues like failure to power on, missing video output, and damage from liquid or other severe causes. Bring your console back to life and enjoy uninterrupted gaming with a reliable, factory-made part tailored to your Xbox ONE X.

About This Item:

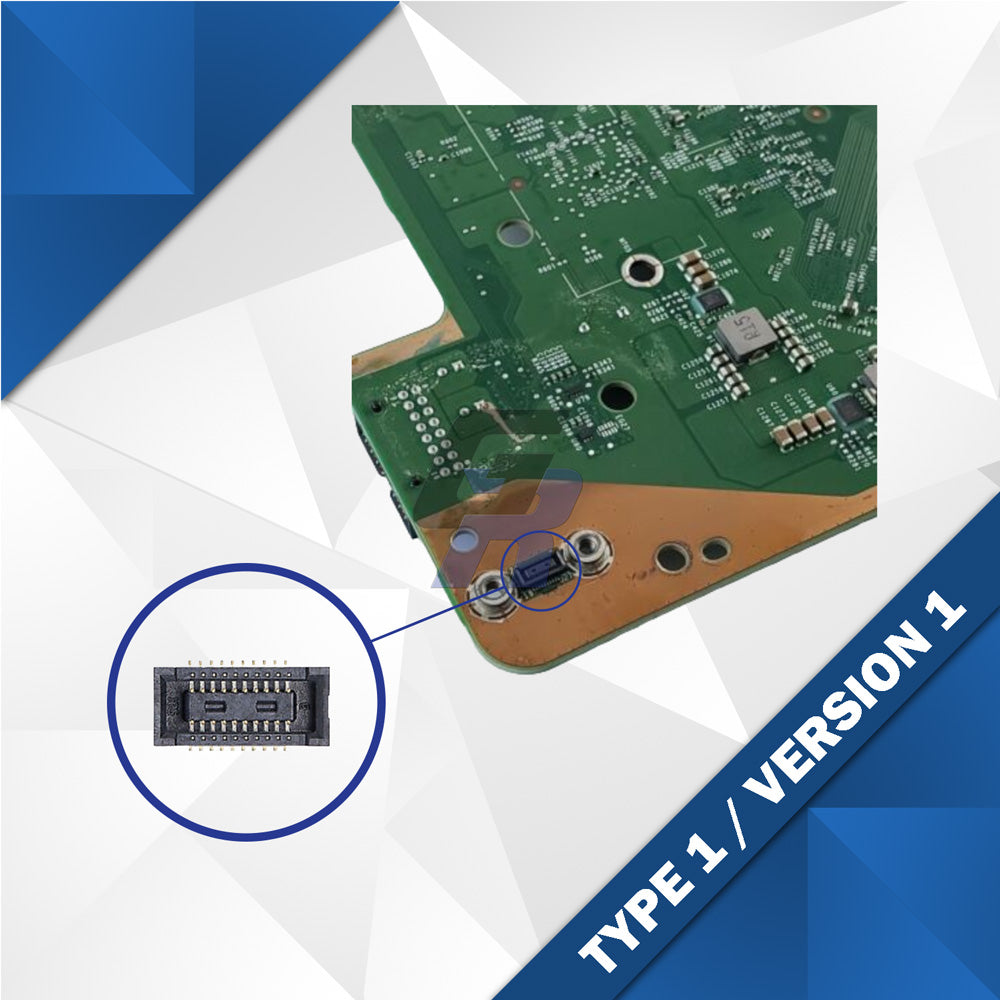

  • The front USB/Sync Ribbon Cable Connector has two little prongs in the center (see images)
  • Rev: (varies)
  • Genuine OEM Replacement
  • Certified Refurbished

Ā

FREE Shipping

On orders over $30

Automatically get FREE Standard Shipping when your order exceeds $30 (before tax).

Same-day Shipping

Order before 1 PM CST

Your order ships the same day when ordered before 1 PM Central Standard Time (M-F).

Secure checkout with
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

  • FREE Delivery on Orders Over $30
  • Industry-leading Warranty
  • 30 Day No-Hassle Returns
View Product Details

Installation

This Xbox ONE X Replacement Motherboard & matching Optical Drive PCB (v1) Type 1 is a direct replacement engineered for model 1787 consoles. Featuring a proprietary form factor, installation requires moderate disassembly alongside some soldering expertise. Proper application of thermal grease to insulate the APU is essential for optimal operation and longevity. Note that replacing the Optical Disc Drive PCB is mandatory to ensure full system compatibility. Ideal for professional repairs or experienced technicians aiming to resolve power, video, or hardware failure issues effectively.

  • Direct Replacement
  • Proprietary Form Factor
  • Some soldering required
  • Moderate disassembly & access
  • Insulating the APU with Thermal Grease is Required

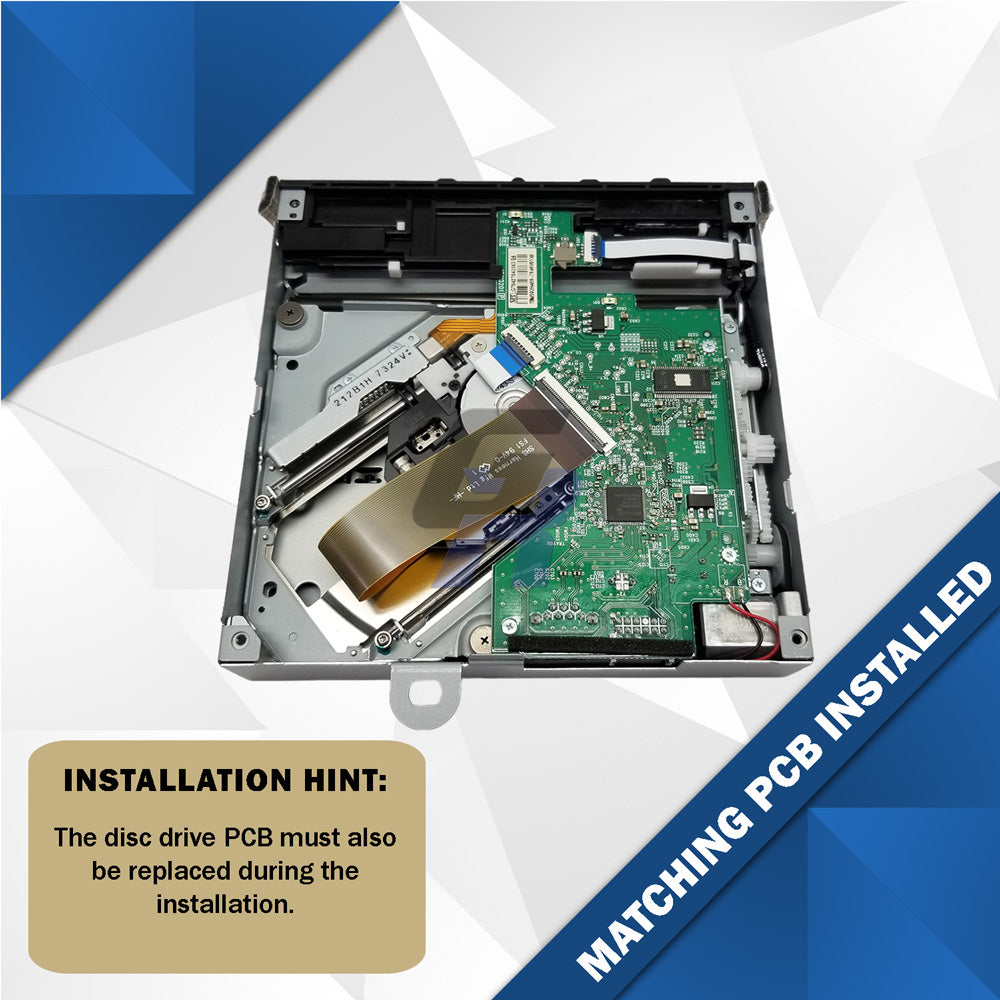

  • Optical Disc Drive PCB Replacement Required

Installation Difficulty

Difficulty Rating: Hard

This installation is Hard, and will require expert technical skills.

About Our Rating System

This rating reflects the expertise required to complete the installation smoothly. If the rating suggests a challenge beyond your comfort zone, consider our Expert Installation Service. They're a fantastic way to ensure a perfect fit and finish, saving you time and giving you peace of mind.

Learn More

Compatibility

This Xbox ONE X Replacement Motherboard & matching Optical Drive PCB (v1) Type 1 is specifically designed to fit Xbox ONE X model 1787. Please verify your consoleā€™s model number before ordering to ensure compatibility, saving time and avoiding unnecessary complications during installation. This precision fit guarantees a seamless repair for technicians addressing power, video, or hardware failures.

  • Fits Xbox ONE X Models 1787

  • Certified Component

    Certified Tested & True. Tested for reliability and fit.

6 Month Warranty

Experience peace of mind with the Xbox ONE X Replacement Motherboard & matching Optical Drive PCB (v1) Type 1, backed by an industry-leading 180-day guarantee. This high-quality OEM part has been rigorously tested and certified to meet strict standards. We stand fully behind its performance, ensuring your repair is reliable and long-lasting from day one.

  • Buy With Confidence!

    This purchase will be covered under our industry-leading warranty!
